Product Summary

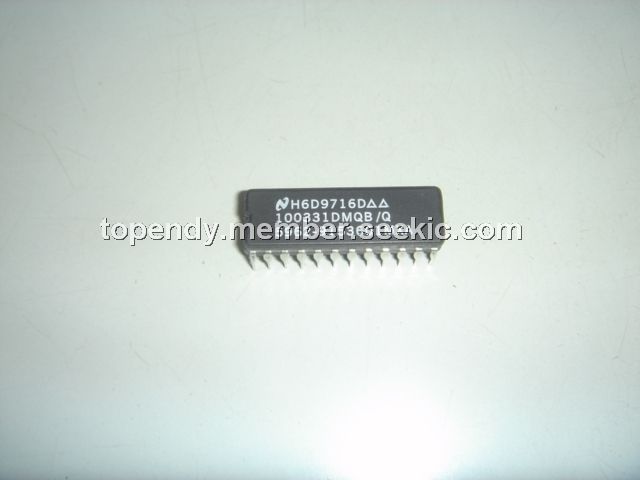

The 100331DMQB is a low power triple D flip-flop. Its package is CDIP.

Parametrics

Absolute maximum ratings: (1)Storage Temperature (TSTG): 65℃ to +150℃; (2)Maximum Junction Temperature (TJ): Ceramic: +175℃; Plastic: +150℃; (3)Pin Potential to Ground Pin (VEE): -7.0V to +0.5V; (4)Input Voltage (DC): VEE to +0.5V; (5)Output Current (DC Output HIGH): -50mA; (6)ESD: ≤2000V.

Features

Features: (1)35% power reduction of the 100131; (2)2000V ESD protection; (3)Pin/function compatible with 100131; (4)Voltage compensated operating range e b4.2V to -5.7V; (5)Available to industrial grade temperature range; (6)Available to MIL-STD-883.

Diagrams
