Product Summary

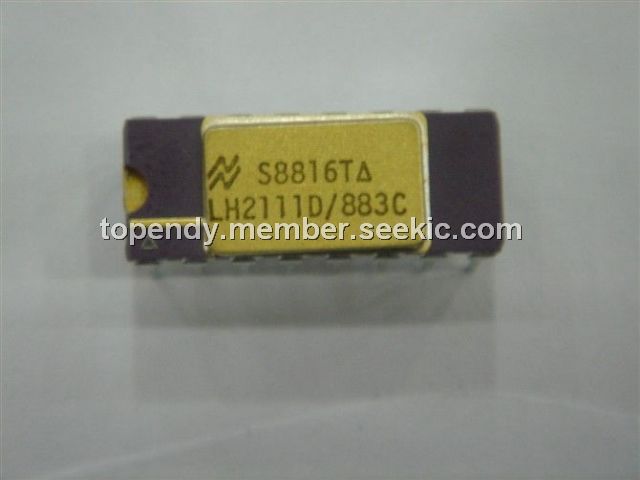

The LH2111D/883B is a dual voltage comparator. It is specified for operation over the -55℃ to +125℃ military temperature range.
Parametrics
Absolute maximum ratings: (1)Total Supply Voltage (V+ - V-): 36V; (2)Output to Negative Supply Voltage (VOUT - V-): 50V; (3)Ground to Negative Supply Voltage (GND - V-): 30V; (4)Differential Input Voltage: ±30V; (5)Input Voltage: ±15V; (6)Power Dissipation: 500mW; (7)Output Short Circuit Duration: 10 sec.
Features
Features: (1)Wide operating supply range: ±15V to a single +5V; (2)Low input currents: 6nA; (3)High sensitivity: 10mV; (4)Wide differential input range: ±30V; (5)High output drive: 50mA, 50V.

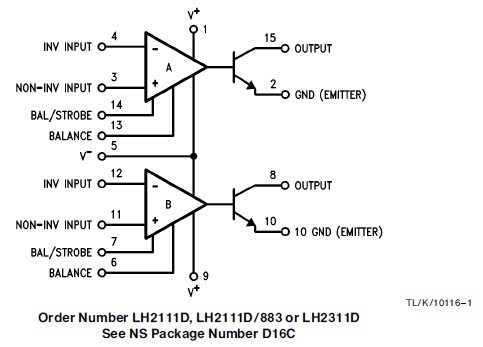

Diagrams
 |
