Product Summary

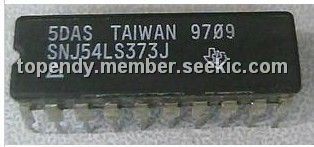

The SNJ54LS373J is a 8-bit register, which features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The high-impedance 3-state and increased high-logic-level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pullup components.
Parametrics
Absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage: 00, S00: 5.5 V, LS00: 7 V; (3)Package thermal impedance, θJA: DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W; (4)Storage temperature range, Tstg: -65℃ to 150℃.
Features
Features: (1)Choice of Eight Latches or Eight D-Type Flip-Flops in a Single Package; (2)3-State Bus-Driving Outputs; (3)Full Parallel Access for Loading; (4)Buffered Control Inputs; (5)Clock-Enable Input Has Hysteresis to Improve Noise Rejection (S373 and S374); (6)P-N-P Inputs Reduce DC Loading on Data Lines (S373 and S374).

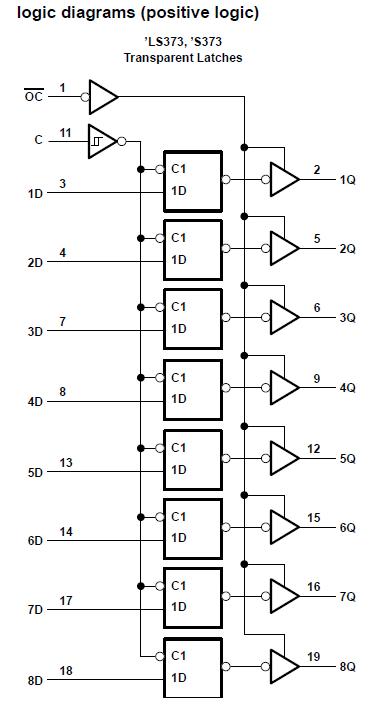

Diagrams
 |
