Product Summary

The JM38510/11003BCA is a true quad 741. It consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar 741 operational amplifier.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±44V; (3)Output Short Circuit Duration: Continuous; (4)Power Dissipation (Pd at 25℃) and Thermal Resistance (θjA): Molded DIP (N) Pd: 750 mW, θjA: 100℃/W; (5)Maximum Junction Temperature: 150℃; (6)Operating Temperature Range: -55℃ ≤ TA ≤ +125℃; (7)Storage Temperature Range: -65℃ to +150℃.

Features

Features: (1)741 op amp operating characteristics; (2)Class AB output stage—no crossover distortion; (3)Pin compatible with the LM124; (4)Overload protection for inputs and outputs; (5)Low supply current drain: 0.6 mA/Amplifier; (6)Low input offset voltage: 1 mV; (7)Low input offset current: 4 nA; (8)Low input bias current 30 nA; (9)High degree of isolation between amplifiers: 120 dB; (10)Gain bandwidth product; (11)LM148 (unity gain): 1.0 MHz.

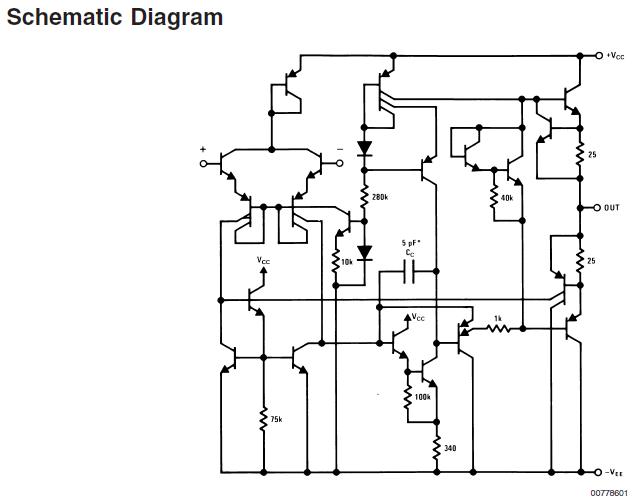

Diagrams

JM38510
JM38510
