The DS16F95J/883Q Differential Bus Transceiver is a monolithic integrated circuit designed for bidirectional data communication on balanced multipoint bus transmission lines. The transceiver meets both EIA-485 and EIA-422A standards.
Parametrics
Absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +175℃; (2)Lead Temperature (Soldering, 60 sec.): 300℃; (3)Maximum Package Power Dissipation at 25℃: J Package: 1300 mW, M Package: 735 mW; (4)Supply Voltage: 7.0V; (5)Input Voltage (Bus Terminal): +15V/-10V; (6)Enable Input Voltage: 5.5V.
Features
Features: (1)Meets EIA-485 and EIA-422A; (2)Meets SCSI-1 (5 MHZ) specifications; (3)Designed for multipoint transmission; (4)Wide positive and negative input/output bus voltage ranges; (5)Thermal shutdown protection; (6)Driver positive and negative current-limiting; (7)High impedance receiver input; (8)Receiver input hysteresis of 50 mV typical; (9)Operates from single 5.0V supply; (10)Reduced power consumption; (11)Pin compatible with DS3695 and SN75176A; (12)Military temperature range available; (13)Qualified for MIL-STD 883C; (14)Standard Military Drawings (SMD) available; (15)Available in DIP (J), SOIC (M), LCC (E), and Flatpak (W) packages.

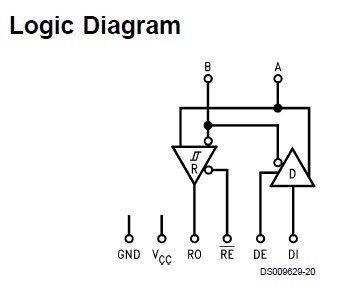

Diagrams
 |
